Multicast testing with VLC media player step-step-guide

HI STUDENT

Today I am doing one practical in which we are doing practical of dense-mode , same we can do the testing on sparse-mode , please go through it & you will able to run the multicast application on your Gns , Please send your feedback so that I can post more innovative practical



BASIC SETUP

We HAVE TWO OPTIONS TO TEST MULTICAST WITH GNS3

1)ONE HOST MACHINE AND ONE VIRTUAL MACHINE

2)USE TWO VIRTUAL MACHINES

For Second Option You Need a Virtualization Software installed ,That Consumes Lot of Memory

SO firstly Start with a Simpler method

Method 1

STEP 1) First You Have to setup a Loopback Adaptor on your Host machine

This is Steps For Window 7 To setup Loopback

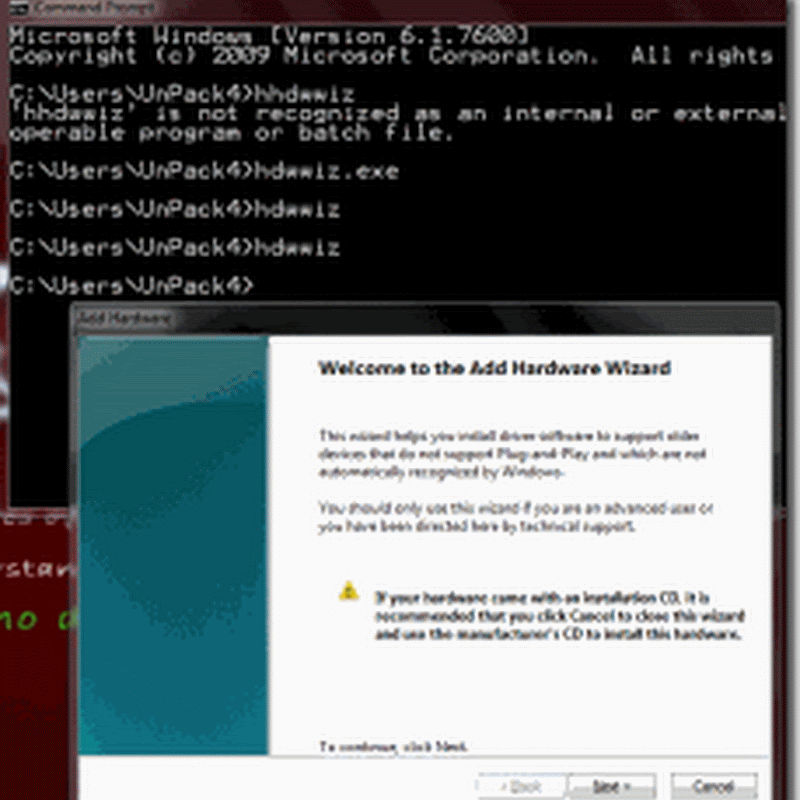

Goto to Command Prompt à Type hdwwiz and Hit enter ..You will see Screen Like it

clip_image002

Click Next then select Install the hardware that I manually select from a list (Advanced)And Next to continue then on new window Scroll down the list and Select Network Adapters then Click Nextà Click Microsoft and Select Microsoft Loopback Adapter and Press Next to Continue

Now Your Loopback Interface is setup .You Have Reboot Your Laptop/PC to get it working on GNS3.

Here is Our LoopBack

clip_image004

2nd things that we have to Setup is Our Virtual Machine .We will Be using “Qemu” for it .It is Provided with GNS3 Package

http://downloads.sourceforge.net/gns-3/Multicast.zip?download

This Lab Package is made by GNS3 Officals …We only Need the Image File in Package.

Download the Package ,Extract it ,You will se a “IMAGES “ Folder and You Will FOUND a File “multicast.img” in it. This is Actually a small linux OS which provided on GNS3 offcial blog to TEST multicasting.Now How to Setup it with GNS3

OPEN GNS3 =>EDIT =>PREFRENCE=>QEMU

IN QEMU WINDOW GO TO “QemuHost” TAB

clip_image006

IN IDENTIFIER PUT ANY NAME .

IN BINARY IMAGE FIELD GIVE THE PATH OF YOUR “multicast.img”

Also You can Increase/decrase the RAM …

Then Click on Save ,Click Ok and We Done

Now We are ready …Lets start GNS3 and Bulid a Multicast Testing lab

Drag the Cloud => Go to Configure =>Cloud Name (C1) =>Select the Microsoft Loopback Adaptor and click Add.

NOTE :You Have to RUN GNS3 As ADMINSTRATOR

ALSO DRAG A QEMU HOST

OUR TOPOLOGY LOOK LIKE THIS

clip_image008

LoopBack Adaptor IP => 192.168.1.10

GATEWAY => 192.168.1.1

QEMU HOST IP => 192.168.100.10

GATEWAY => 192.168.100.1

WHEN YOU START Qemu HOST ,It Will start Linux OS ..it takes time ,about 5 minuts.

Router Config

!

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname Router

!

boot-start-marker

boot-end-marker

!

!

no aaa new-model

ip cef

!

!

!

!

ip multicast-routing

!

multilink bundle-name authenticated

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

interface FastEthernet0/0

no ip address

shutdown

duplex half

!

interface Ethernet1/0

ip address 192.168.1.1 255.255.255.0

ip pim dense-mode

ip igmp static-group 224.1.1.1

duplex half

!

interface Ethernet1/1

ip address 192.168.100.1 255.255.255.0

ip pim dense-mode

ip igmp static-group 224.1.1.1

duplex half

!

interface Ethernet1/2

no ip address

shutdown

duplex half

!

interface Ethernet1/3

no ip address

shutdown

duplex half

!

interface Ethernet1/4

no ip address

shutdown

duplex half

!

interface Ethernet1/5

no ip address

shutdown

duplex half

!

interface Ethernet1/6

no ip address

shutdown

duplex half

!

interface Ethernet1/7

no ip address

shutdown

duplex half

!

no ip http server

no ip http secure-server

!

!

!

logging alarm informational

!

!

!

!

!

!

control-plane

!

!

!

!

!

!

gatekeeper

shutdown

!

!

line con 0

stopbits 1

line aux 0

line vty 0 4

!

!

End

Now Go to Our Linux Machine …Open terminal

Type

chmod 777 start.sh (to give it execute permission)

Then ./start.sh (Execute Script)

clip_image010

It will start VLC PLAYER
